Home > Micro Stepper Motor >

20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer

Product Categories

Changzhou Vic-Tech Motor Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer

Name: 20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer
Brand: VIC-TECH
Price: 4.50 USD

Wholesale 20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer from china suppliers

Model Number : 20BY45-

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 5

Price : $4.50-7

Motor diameter : 20mm

Motor length : 18mm

Reduction box length : 16.0mm, 17.5mm, 19mm, 20.5mm

Working voltage : 2.4V to 12V

Motor speed : 10rpm, 20rpm, 30rpm, 45rpm, 50rpm, 60rpm, 100rpm, 200rpm, 500rpm

Phase : 2

Current per phase : 385mA

Resistance per phase : 10Ω ± 10% (25℃)

Max starting frequency : 1000 pps

Max response frequency : 1200 pps

Step angle : 1.8 degree

Rated voltage : 8V

Inductance per phase : 6.3mH

Number of wires : 4

Model : 20BY45

Contact Now

Product Description

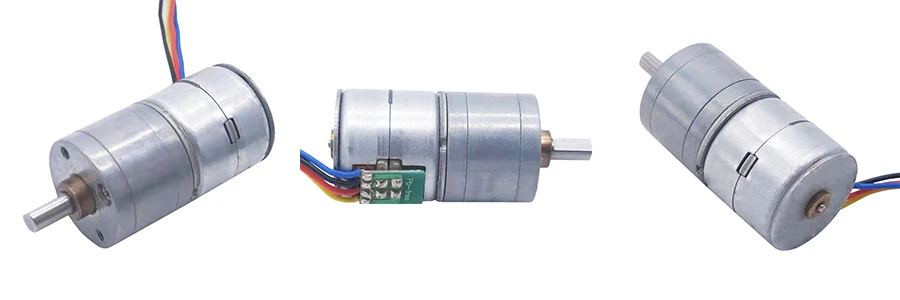

20mm Diameter 385mA Current 8V Rated Voltage Micro Stepper Motor for Urine Analyzer

The SM20 reduction stepper motor has a diameter of 20mm. The length of the motor is 18mm and the length of the reduction box, and
the length of the reduction box is 16.0mm, 17.5mm, 19mm and 20.5mm respectively.
The working voltage range of the motor: 2.4V to 12V, the motor speed can achieve the following parameters: 10rpm, 20rpm, 30rpm,
45rpm, 50rpm, 60rpm, 100rpm, 200rpm and 500 rpm.
In the absence of electromagnetic interference and non-overloading, the speed and stop position of the motor are not limited to
the frequency of the pulse signal and the number of pulses, and are not affected by the load change.

Product: picture:

Design Layout (Unit:mm)

Specification

Model	20BY45
Product Name	Geared stepper motor
Motor diameter	20mm
Resistance	10Ω ± 10%/ phase (25℃)
Max Starting Frequency	1000 pps
Max Response Frequency	1200 pps
Step angle	1.8 degree
Rated voltage	8 V
Inductance/phase	6.3mH

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Company Profile

Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers. We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(35.00%),North America(25.00%),Northern Europe(20.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stepper motor,linear motor,geared motor,micro motor,BLDC motor

4. why should you buy from us not from other suppliers?
Vic-Tech Motor has been specializing in producing micro motors since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.We provide customers with design and development custom services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
